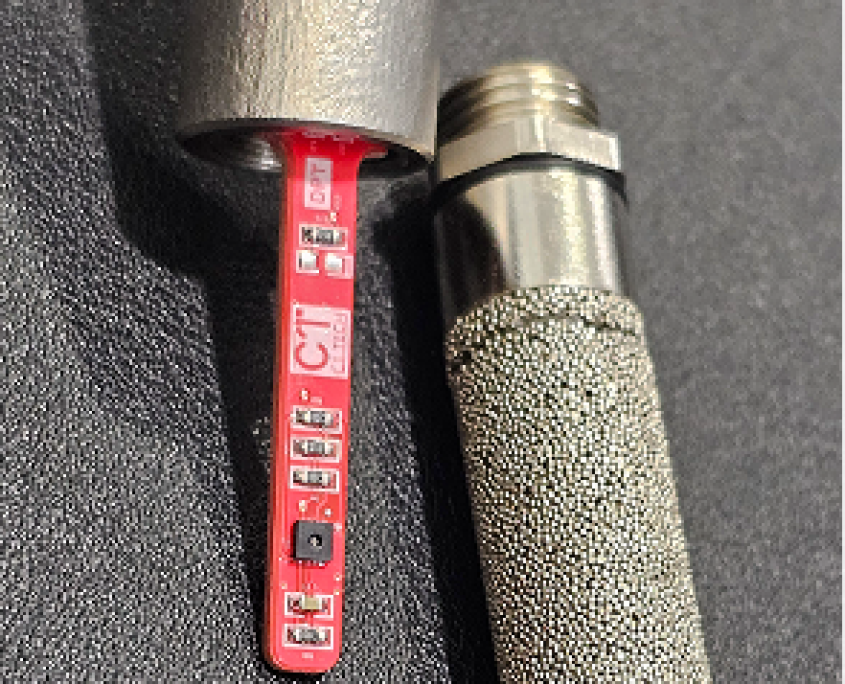

Duct Air Monitoring Sensor
Designed for installation in exhaust systems, the Duct Air Monitoring Sensor ensures optimal environmental conditions by providing accurate and reliable temperature and humidity measurements. Its robust design guarantees durability and reliable performance across varying conditions.
Key Features
- Power Supply: 12–24 VDC
- Power Consumption: 1 W
- Temperature Measurement Range: 0 to 50°C (±0.2°C accuracy)
- Humidity Measurement Range: 0 to 100% RH (±2% RH accuracy)
- Communication: Modbus RTU over RS485 / Analog Output 0–10 V
- Electrical Connection: SMD pad, suitable for wires up to 1.5 mm²
- Response Time: <0.5 seconds

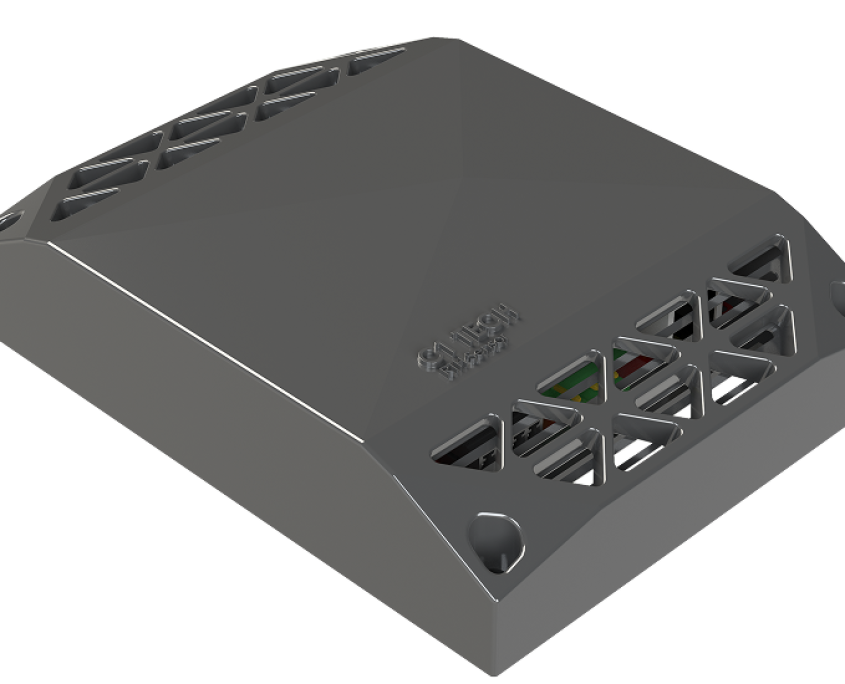

Air Monitoring Sensor
The Air Monitoring Sensor is a high-precision device designed for real-time monitoring of temperature, humidity, eCO₂, and TVOCs. Encased in a durable stainless steel housing with MEMS sensors, it is ideal for cleanrooms, hospitals, laboratories, and industrial environments. The device supports network connectivity for seamless integration with UCMS and HVAC systems.
Key Features
- Temperature: –40°C to +125°C with ±0.1°C accuracy
- Humidity: 0% to 100% RH with ±1.5% accuracy
- Air Quality: Measures TVOCs from 10 to 1000 PPM, including alcohol vapors, benzene, ammonia (NH₃), nitrogen oxides (NOₓ), and carbon monoxide (CO)

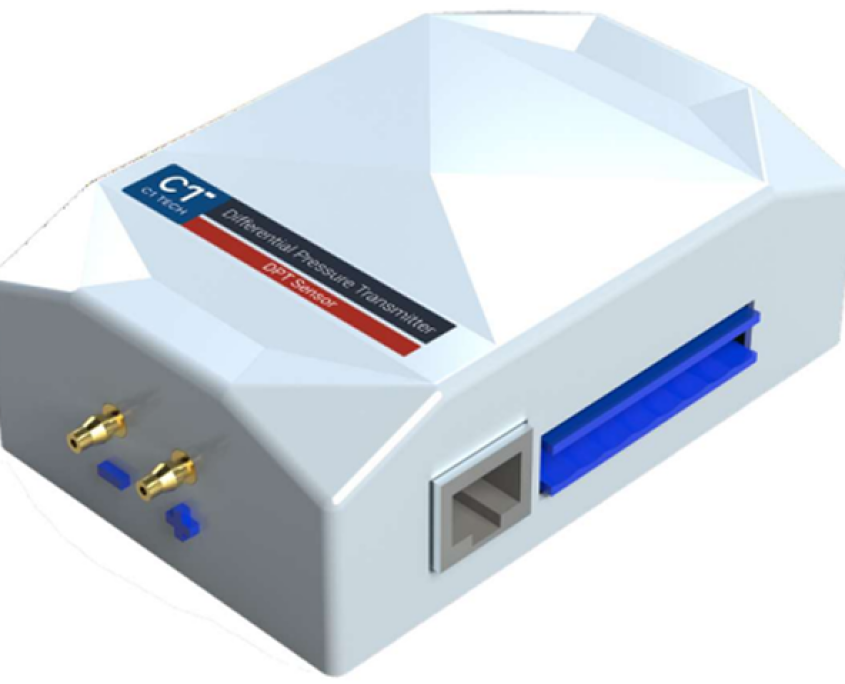

Differential Pressure Transmitter (DPT)
The DPT Differential Pressure Transmitter is engineered for monitoring pressure differences between rooms in cleanroom environments or measuring absolute room pressure. It ensures that critical areas such as operating rooms and clean zones maintain the required pressure levels to prevent the ingress of contaminants and microorganisms.
Key Features
- Power Supply: 12–24 VDC
- Power Consumption: 2 W
- Pressure Type: Differential
- Pressure Range: 125 Pa to 800 Pa
- Communication & Interfaces: MODBUS RTU over RS485 / TCP over Ethernet, Analog Output 0–10 V
- Storage Temperature: –10°C to 70°C
